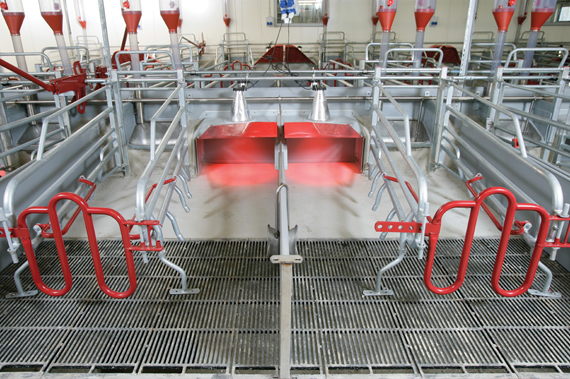

INN-0-CRATE Traditional Farrowing Crates - A complete framework for a perfect start.
This is the complete farrowing pen for modern pig production, which demands space and hygiene as well as easy access to the pen. The covered creep area meets all recommendations for a large area for piglets. The easy to-
clean material in moulded plastic makes it easy to give the piglets an optimal environment with good hygiene.
The sow is offered the best possible conditions in the farrowing crate, which can be adjusted in
length and width as required. The tilting wings inside the farrowing rail and the fingers mounted on either side of the rail ensure a high degree of safety for the piglets. The sow hygiene is also good due to the integrated sow trough, which is made of deep drawn stainless steel that is easy to clean. The low design of the pen gives the employees
easy access.
Many weaned piglets, high weaning weight
The Farrowing crate is adapted to the anatomy of the sow and can be adjusted to her size. This provides safe farrowing, getting up and lying down.

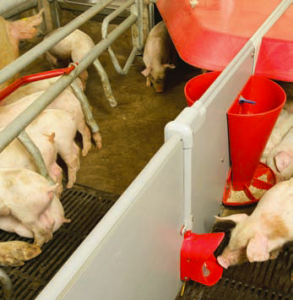

The design of the crate sides ensures the piglets' free access to the utter.
The tiltable wings minimize the risk of piglets being crushed.

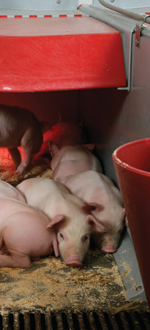

The largest creep box on the market: room for all the piglets.
Many weaned piglets, high weaning weight
The Farrowing crate is adapted to the anatomy of the sow and can be adjusted to her size. This provides safe farrowing, getting up and lying down.
The design of the crate sides ensures the piglets' free access to the utter.
The tiltable wings minimize the risk of piglets being crushed.
The largest creep box on the market: room for all the piglets.
Optimum climate (closed sides that prevent draught)
Tight assembling and close connection between lid and fixed part
Up to 0.8m2 covered area
Individual adjustment possible
Easy access
Piglet nest can be right- or- left handed
Width: 80/90cm
Facts
|
Farrowing pen |
|
|
Pen length |
250-270 cm |
|
Pen width |
160-180 cm |
|
Pen height |
50 cm |
|
Profiles |
35 x 500 mm |
|
Farrowing crate XL |
|
|
Length from the back side of the trough |
200-210 cm |
|
Inner width, front |
52-61 cm |
|
Inner width at rear gate, multi adjustable: |
57-85 cm |
|
Height pen side |
90 cm |
|
Tower |
40 x 40 x 4 mm |
|
Pen side |
33,7/42,4 x 2,65 mm rør |
|

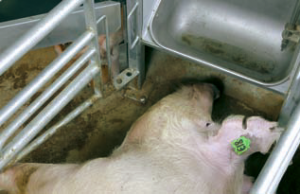

Volume, stainless steel trough |
21 liter |
|
Creep box, width |
80 or 90 cm |
|
Creep bow, space |
0,7 or 0,8 m2 |
|
Water |
|
|
Water supply |
1" stainless steel or galvanized pipe |
|
Water pipes for sow |
23 mm stainless steel pipe, stainless steel bracket and drill clamp |
|
Nipple for sow |
Stainless steel stem nipple, 13 litres/ minute |
|
Water supply, piglets |
VIP-O-MAT® with flexible and easy to clean PE-hose and hose protection in plastic |
