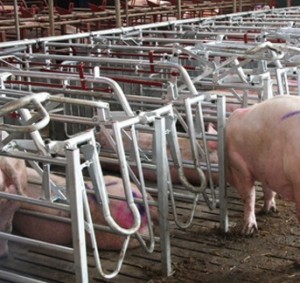

INN-O-STALL® FREE ACCESS stalls
The new stall systems with loose sows have resulted in a new generation of free access stalls. From the very beginning Egebjerg has been in the front regarding development of new systems and therefore Egebjerg has a well-tested and large programme of stalls considering the pigs' needs and at the same time they are very user-friendly.

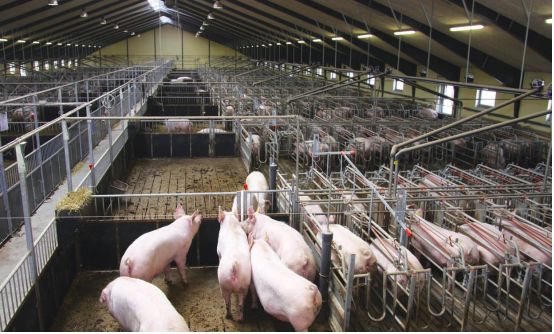

Free access stalls for loose sows ensure every sow a feed ration, and at the same time the single animal can be supervised daily.

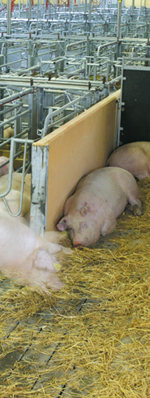

The free access stall makes it possible for the sow to choose between staying in the stall or in the common area. The sow can seek rest in the stall and protection from the other sows.
Egebjerg's INN-O-STALL® FREE ACCESS stalls ensures:
|
• |
Good working environment |
No inconvenient pipes above the sows. The opening in the gate allows easy access |
|
• |
User-friendly |
The stalls are equipped with a one-hand locking system |
|
• |
Safety for the sows |

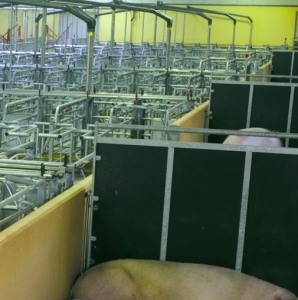

Gates and partitions are designed to prevent injuries. The closed partition at the trough reduces feeding aggression. The locking system is patented and prevents external sow access |
|
• |
Durablility |
Strong construction |
Easy access and safety
Simple sow operated entry and locking of rear gate means low stress level, more live born piglets and less risk of abortion.
The locking system prevents external sow access. When the sow enters an open stall it affects the front wing, which automatically closes the rear gate, which locks. The sow leaves the stall by pushing the rear gate, which unlocks. Furthermore the stalls can be opened and closed centrally. It is also possible to close the individual stalls manually, if you want to separate a sow from the group.
Good working environment
Opening of rear gate allows personnel easy access for inspection, scanning and treatment. The closing mechanism is integrated in the partition. Therefore there are no interferring rods above the sow.

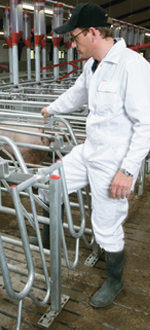

The central lock may be operated with one hand only. It can be operated from alley and pen. The locking system is placed in accessible height. Sturdy equipment provides long durability.
We also offer the following: Solutions with floor feeding or Biofix, slow feeding in gestation units made of strong and flexible INN-O-FLEX® equipment. Please contact us for further information.
